Connection Status

In the upper right hand corner of any Inspire screen except Get Started, connection status icons for the hearing aids and programmer displays during a live fitting and as the hearing aids are programmed, the connection status icons change to reflect their current state. Details regarding either the hearing aid or programmer displays in a tool tip by pointing to any connection status icon.

Programmer Connection Status Icon	Description
	Indicates that the selected programmer is currently being used in a fitting.
	Indicates that the selected programmer is not currently detected.
Hearing Aid Connection Status Icon
	Indicates that no wired hearing aid is currently being used in a fitting or is detected.
	Indicates that a wired hearing aid is currently detected and ready to be used in a fitting.
	Indicates that a hearing aid is currently being used in a fitting.
	Indicates that a hearing aid is currently being programmed, read, or Speech Mapping is active. The background of the icon appears to be moving.
Tool Tip
	The programmer and serial number, if applicable, of the currently connected programmer displays in a tool tip by pointing to the connection status icon.
	The product, receiver matrix, serial number, and firmware version of the currently connected hearing aid displays in a tool tip by pointing to the connection status icon.

Watermarks

Inspire also uses a series of watermarks to indicate connection or hearing aid. The watermarks appear across the frequency response curves. There are five main watermarks: Disconnected, Full on Gain, N/A for Open Ear, Retrieved, and Simulated. Additional watermarks display and are noted in the feature's instructions where applicable.

Watermark	Description

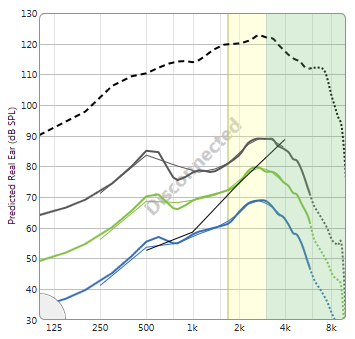

Disconnected Watermark	Indicates that the hearing aid or programmer used within the current session has disconnected.

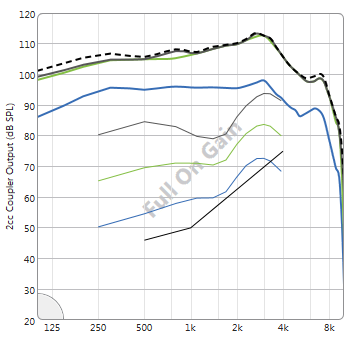

Full On Gain Watermark	Indicates the hearing aid connected or disconnected is currently set with full on gain settings.

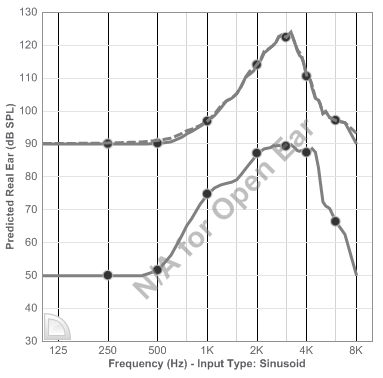

N/A for Open Ear Watermark	Indicates the hearing aid connected contains an open vent which is not supported in Audiometer or Verify Comfort for Xino Classic, Zōn, and Destiny products.

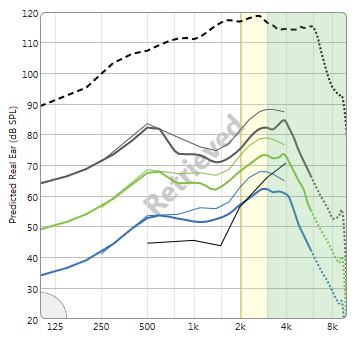

Retrieved Watermark	Indicates that the currently displayed responses have been retrieved from the database but the hearing aid is not connected.

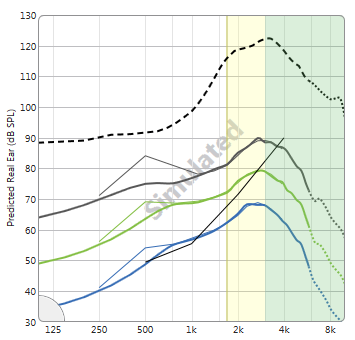

Simulated Watermark	Indicates a hearing aid is being simulated.
